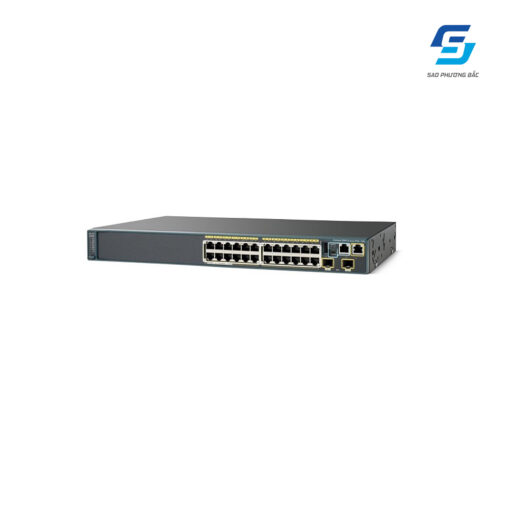

Switch Cisco Catalyst 2960 WS-C2960S-24TD-L

52,377,000₫

Tình trạng: Mới 100%
Bảo hành: 12 tháng
Trạng thái: Sẵn hàng
Giao hàng: Toàn quốc
Liên hệ báo giá: 0856 162 162

Category: Switch

Description

Switch Cisco Catalyst 2960 WS-C2960S-24TD-L là sản phẩm được phân phối bởi Sao Phương Bắc, sản phẩm chính hãng kèm bảo hành.

The Cisco Catalyst 2960-S Series Switches WS-C2960S-24TD-L is a Layer 2 switch outstanding with its 2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP dual-purpose uplinks, with each dual-purpose uplink port has one port active at a time, for Gigabit Ethernet uplink flexibility, allowing use of either a copper or fiber uplink. WS-C2960S-24TD-L also provides 24 Ethernet 10/100/1000 switch ports, optional Cisco FlexStack stacking support and LAN Base image, which functions make this model an easy-to-use switch device.

– 24 Ethernet 10/100/1000 ports

– Two 10 Gigabit Ethernet or 2 1 Gigabit Ethernet SFP+ uplink ports

– Optional Cisco FlexStack stacking support

– LAN Base image

Đặc tính kỹ thuật

WS-C2960S-24TD-L Specifications
General Information
Device Type	Switch – 24 ports – Managed
Enclosure Type	Rack-mountable – 1U
Ports	24 x 10/100/1000 + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	Yes
Performance	Switching capacity: 176 Gbps
Performance	Forwarding performance (64-byte packet size) : 65.5 Mpps
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	Layer 2 switching, auto-sensing per device, dynamic IP address assignment , auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM	128 MB
Flash Memory	64 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Expansion / Connectivity
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T – RJ-45
	USB: 1 x 4 PIN USB Type A
	1 x console – mini-USB Type B – management
	1 x console – RJ-45 – management
	1 x 10Base-T/100Base-TX – RJ-45 – management
	2 x SFP+
Expansion Slot(s)	1 (total) / 1 (free) x Stacking Module
Power
Power Device	Power supply – internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	39 Watt
Rack Mounting Kit	Optional
MTBF	332,958 hour(s)
Compliant Standards	TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
Software / System Requirements
Software Included	Cisco IOS LAN Base
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty – replacement – lifetime – response time: next business day
	Limited warranty – power supply and fans – 5 years
	New releases update
Environmental Parameters
Min Operating Temperature	23 °F (-5 °C)
Max Operating Temperature	104 °F (40 °C)
Humidity Range Operating	10 – 95% (non-condensing)
Min Storage Temperature	-13 °F (-25 °C)
Max Storage Temperature	158 °F (70 °C)
Humidity Range Storage	10 – 95% (non-condensing)
Dimensions	17.5 in. (44.5 cm) x 11.8 in. (29.9 cm) x 1.8 in. (4.5 cm)
Weight	9.5 lbs (4.3 kg)
