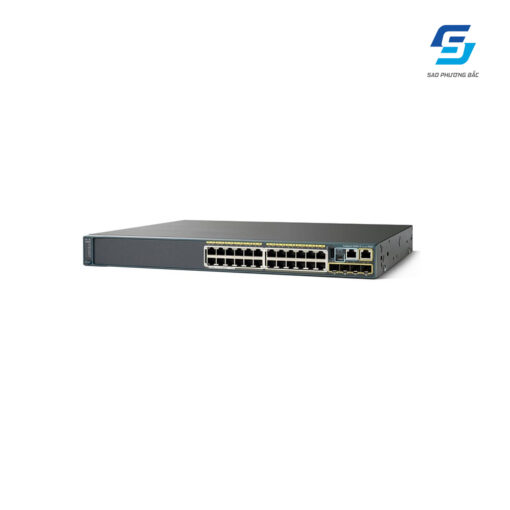

Switch Cisco Catalyst 2960 WS-C2960S-24PS-L

44,109,000₫

Tình trạng: Mới 100%
Bảo hành: 12 tháng
Trạng thái: Sẵn hàng
Giao hàng: Toàn quốc
Liên hệ báo giá: 0856 162 162

Category: Switch

Description

Switch Cisco Catalyst 2960 WS-C2960S-24PS-L là sản phẩm được phân phối bởi Sao Phương Bắc, sản phẩm chính hãng kèm bảo hành.

Cisco Catalyst 2960-S Series Switch WS-C2960S-24PS-L is outstanding with its Power over Ethernet (PoE) capacity. This model has the Power supply options with 370W total fixed power supplies for POE switches as 12 ports up to 30W per switch port or 24 ports up to 15.4W per switch port. In addition to this, Cisco WS-C2960S-24PS-L’s 24 PoE ports are also Ethernet 10/100/1000 ports and this device provides new FlexStack switch stacking capability with 4 One Gigabit Ethernet uplink ports with Small Form-Factor Pluggable (SFP) with 20Gbps throughput performance.

Feature

– 24 Ethernet 10/100/1000 PoE+ ports

– 370W PoE capacity

– Four 1G Small Form-Factor Pluggable (SFP)

– USB interfaces for management and file transfers

– LAN Base or LAN Lite Cisco IOS Software feature set

– SmartOperations tools that simplify deployment and reduce the cost of network

Đặc tính kỹ thuật

WS-C2960S-24PS-L Specifications
General Information
Device Type	Switch – 24 ports – Managed
Enclosure Type	Rack-mountable – 1U
Ports	24 x 10/100/1000 + 4 x SFP
Power Over Ethernet (PoE)	PoE
Performance	Switching capacity: 176 Gbps, Forwarding performance (64-byte packet size): 41.7 Mpps
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	Layer 2 switching, auto-sensing per device, dynamic IP address assignment , power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE+, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM	128 MB
Flash Memory	64 MB Flash
Status Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Expansion / Connectivity
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T – RJ-45, PoE, USB: 1 x 4 PIN USB Type A, 1 x console – mini-USB Type B – management ¦ 1 x console – RJ-45 – management, 1 x 10Base-T/100Base-TX – RJ-45 – management, 4 x SFP (mini-GBIC)
Expansion Slot(s)	1 (total) / 1 (free) x Stacking Module
Power
Power Device	Power supply – internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	55 Watt
Rack Mounting Kit	Optional
MTBF	245,604 hour(s)
Compliant Standards	TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
Environmental Parameters
Min Operating Temperature	-5 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 – 95% (non-condensing)
Min Storage Temperature	-25 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 – 95% (non-condensing)
Width	44.5 cm
Depth	38.6 cm
Height	4.5 cm
Weight	5.77 kg
